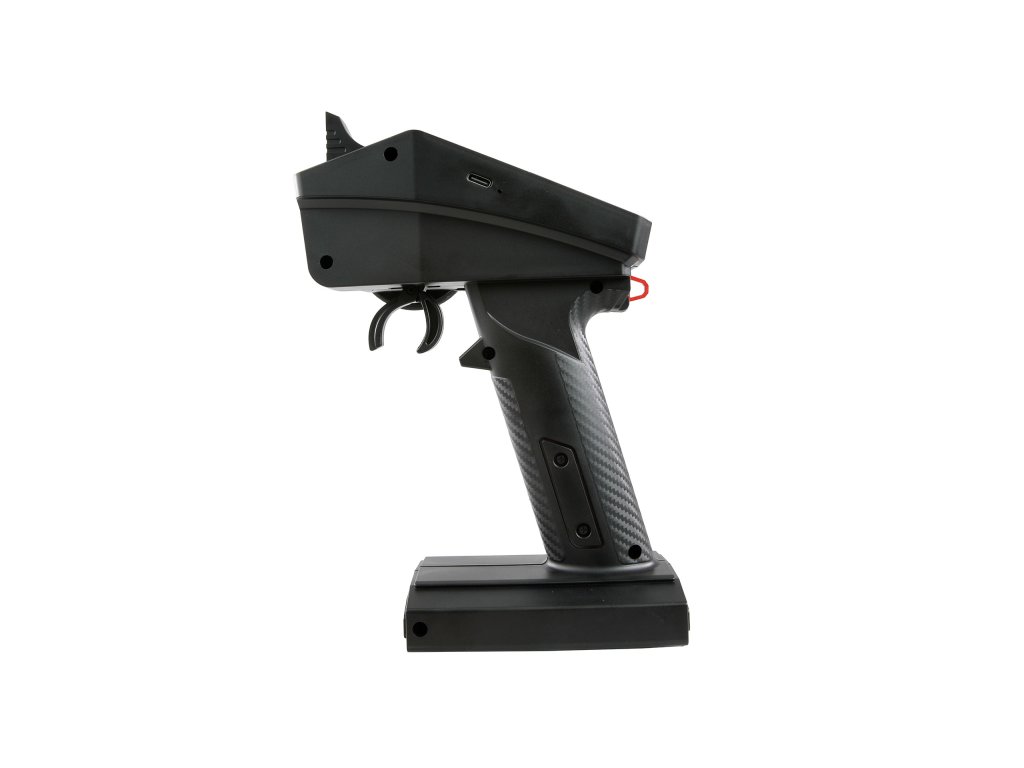

Amewi RC ATXB8 8-channel radio set

Detailed product description

The 8-channel ATXB8 gun remote control offers numerous functions and is easy to operate. All channels are programmable, there is a memory for up to 8 models and a large colour display that provides a clear overview. In addition, the remote control has mixing functions for various channels to enable flexible control. An integrated telemetry function shows the battery voltage of the model or the receiver power supply directly on the display in real time. Other practical functions include a dual rate setting for throttle and steering as well as the option to individually adjust the servo direction for all channels. An additional lever has been integrated on the steering wheel for convenient one-handed operation. The system can be easily updated or used for simulators, for example, via the USB-C port. The remote control is operated via the throttle, steering, a pushbutton on the handle (SWB), a three-way switch above the handle (SWA) and four buttons on the top. The digital trim stores all settings permanently, even if the remote control is switched off and on again. Another safety feature is the automatic switch-off function, which is activated after 15 minutes without input. The transmitter emits a beep one minute before it switches off to conserve battery life. As an additional feature, an integrated car racing game is available, which is controlled via the steering and throttle of the remote control, while the display serves as a screen for the game.

Highlights:
Fully programmable with 8 controllable channels and 8 model memories: Ideal for functional models, boats, onroad/offroad models or crawlers (not suitable for model aircraft)
Telemetry-capable receiver incl. battery cable: For data transmission from the drive battery to the remote control display
4V-9V operating voltage: Therefore also lipo-compatible (max. 2S LiPo) thanks to XH connection. 18650 Li-Ion cells (2x) can also be installed in the battery compartment through a separate flap

Further features:
High-quality potentiometers installed for durability and sensitive control
Failsafe programmable
Protective function in the transmitter for batteries and rechargeable batteries, if no input is made for 15 minutes, the remote control switches off automatically
Steering wheel equipped with additional control lever for convenient one-handed operation
Dual rate for steering and throttle via the remote control menu (steering angle and speed can be adjusted to requirements)
Full range (min. 200 metres) thanks to interference-free 2.4 GHz band
Remote control sits comfortably in the hand and weighs just 230g, making it suitable for children and smaller hands
Mixing functions for all programmable channels
Servo travel can be set separately for all channels
Servo reversal for channel 1+2 (usually steering and throttle)

Technical data:
Channels: 8
Frequency: 2.4GHz FHSS
Betriebsfrequenz: 2400-2438,5MHz
Maximum peak power: 14dBm
Maximum range: 300 metres
Response speed: PWM<20ms
Length: 135mm
Width: 75mm
Height: 205mm
Empty weight: 230g
Operating voltage: 4-9V (4xAA 1.5V Mignon batteries, 2xLiIon 18650 or 2S LiPo battery)
Display dimensions: 50x35mm
Battery compartment dimensions: 60x55x15mm

Technical data receiver:
Length: 40mm
Width: 22mm
Height: 12mm
Weight: 8g
Channels: 8
Frequency: 2.4GHz FHSS
Input voltage: 4-9V

Scope of delivery:
Remote control
Receiver
Battery telemetry connection
Hexagon socket spanner
USB-C cable
Instructions DE/EN

Required accessories:
4x 1.5V AA Mignon battery
2x 18650 Li-Ion cells or 2S 7.4V LiPo battery with XH balancer
LiPo charger
