Amewi RC MB Unimog Implement Carrier 4WD anthracite 1/10 ARTR

Product detailed description

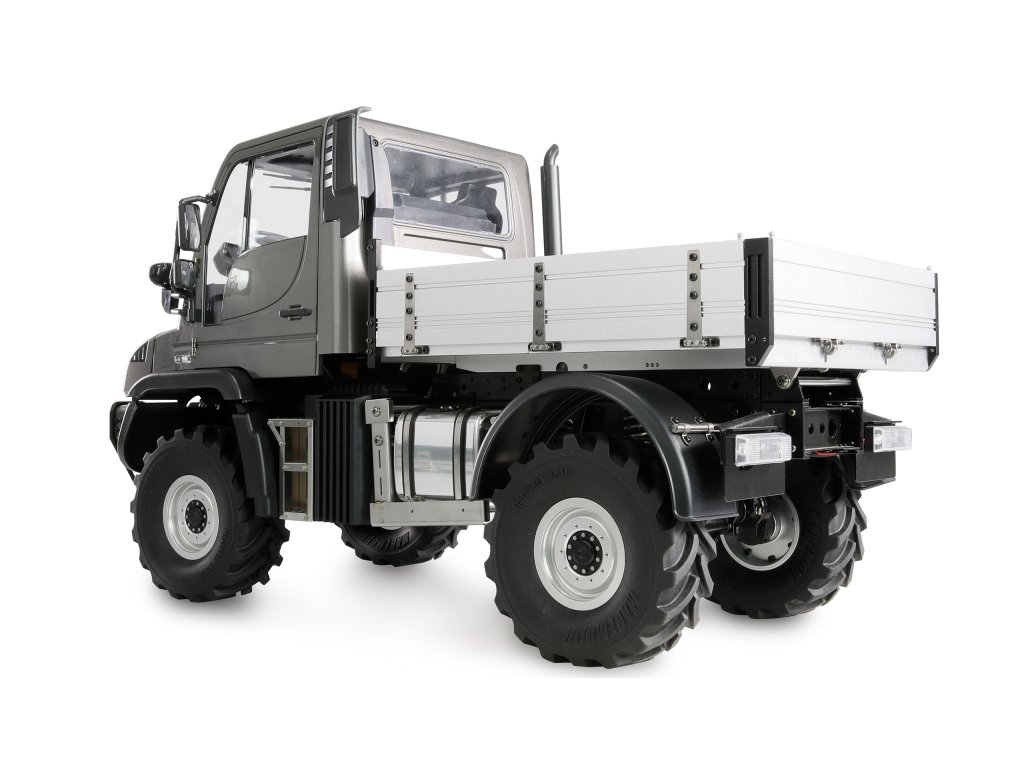

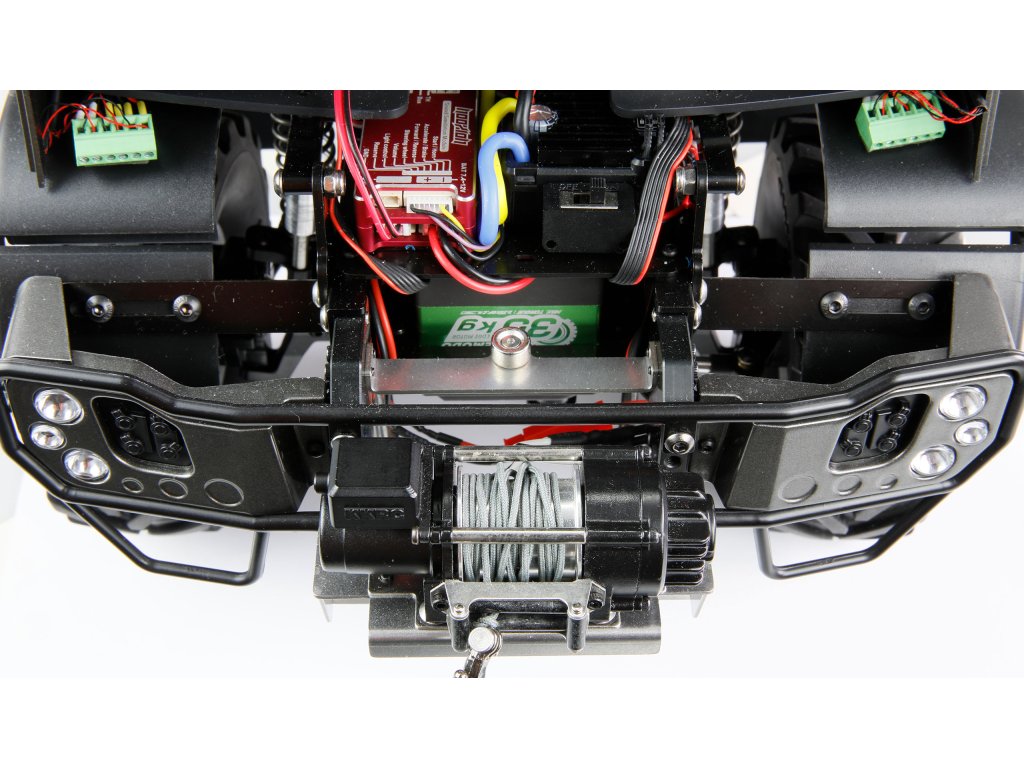

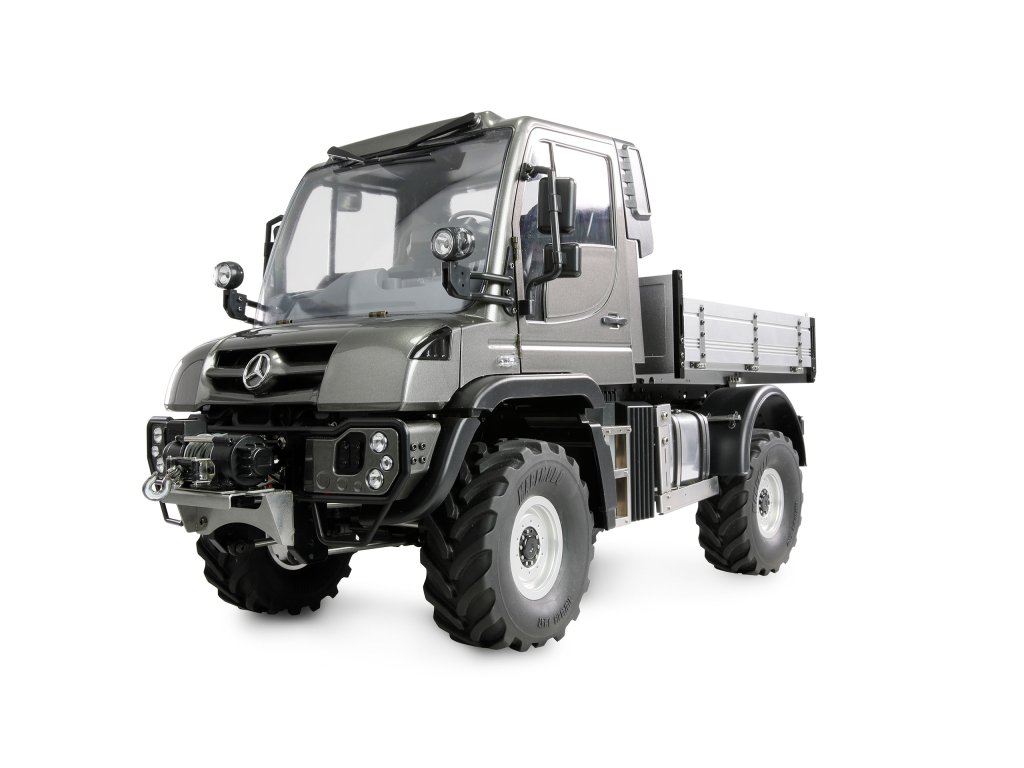

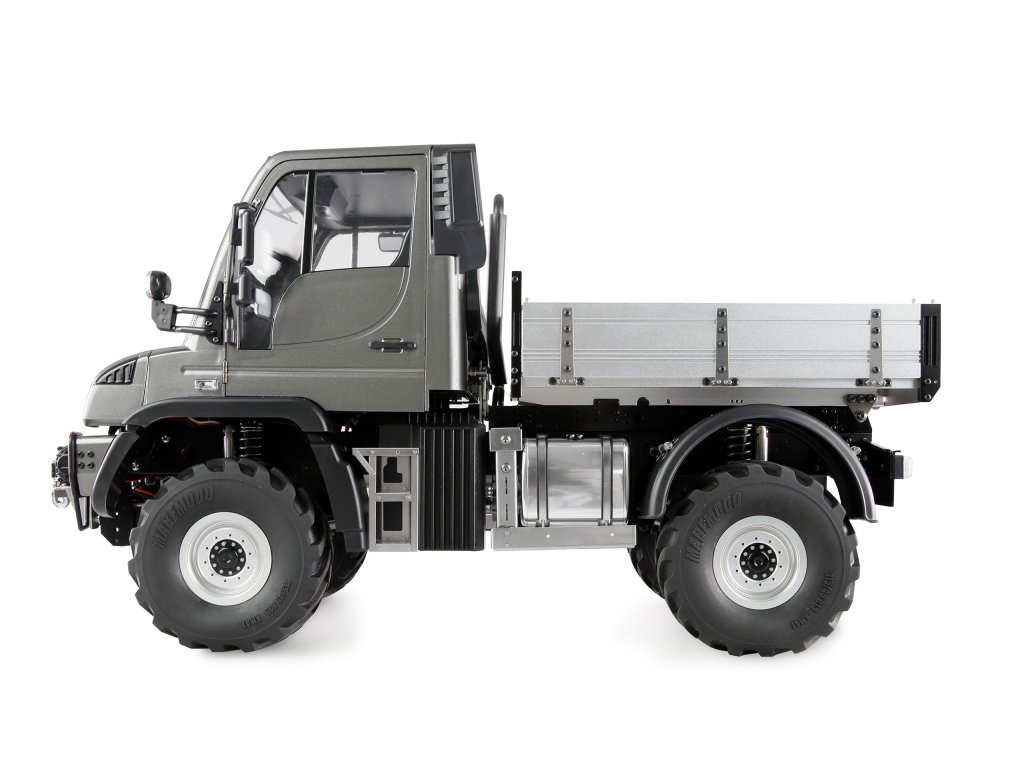

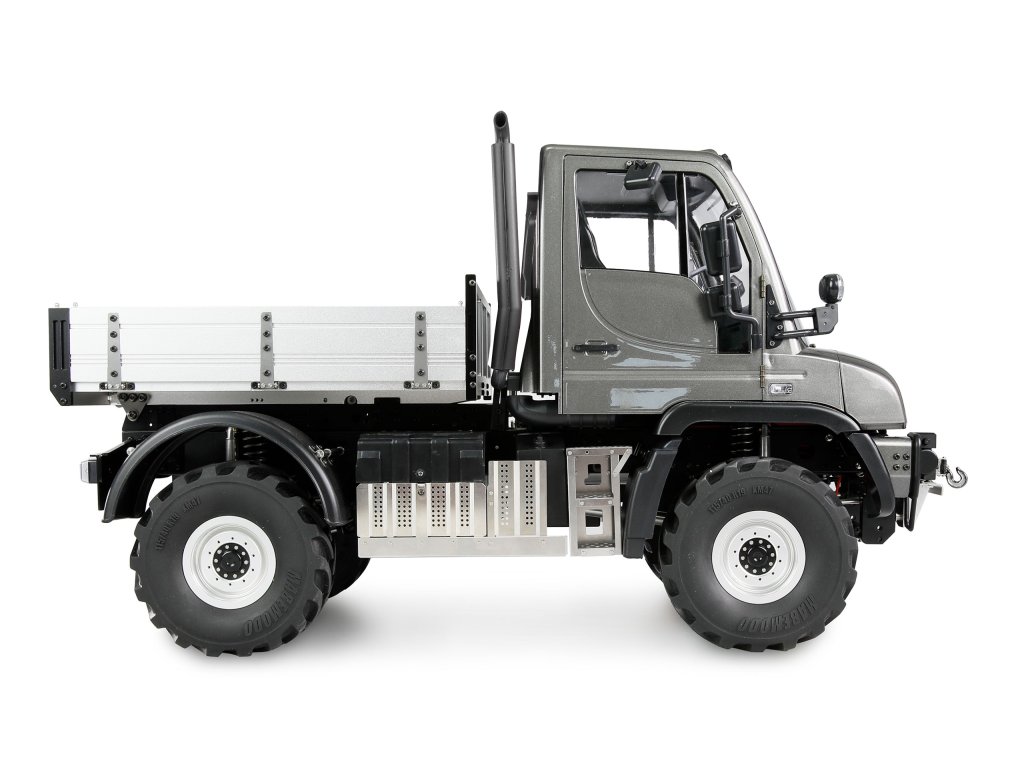

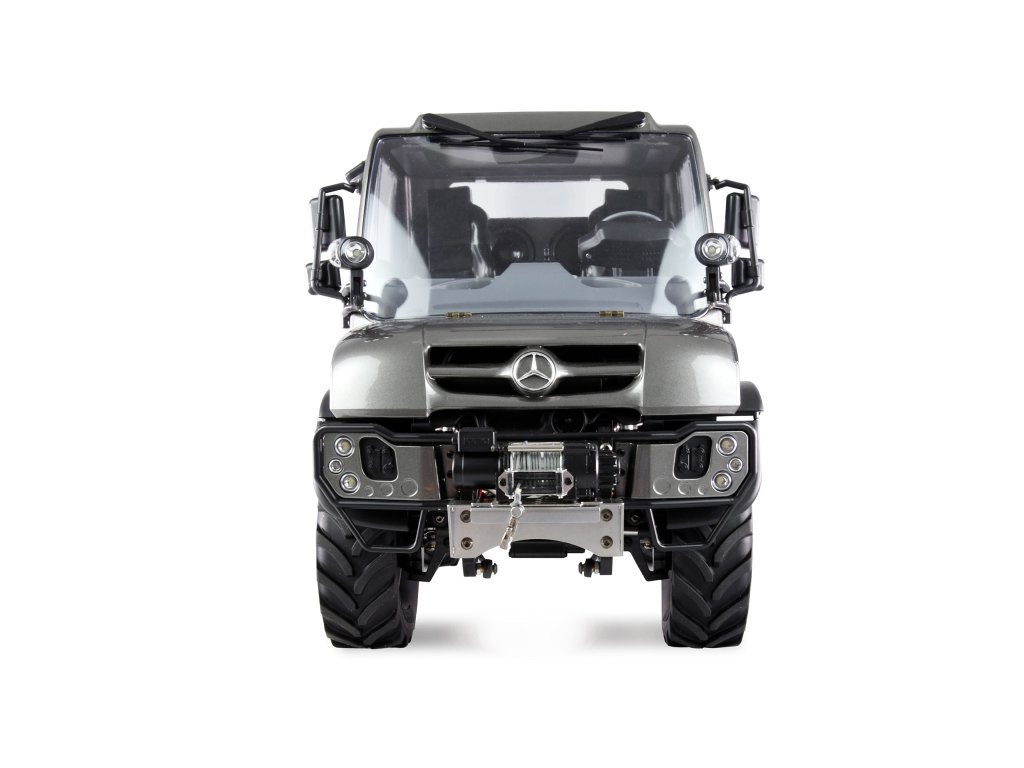

Officially licensed replica of the famous Unimog, which is used for example when mowing or in forests. A functional cable winch is mounted on the front grille, which can be controlled using the supplied 10-channel remote control.

The model is largely made of metal, weighs almost six kilograms, has a switchable 2-speed gearbox, portal axles and lockable differential locks. Soft and profiled rubber tires, permanent all-wheel drive and four sensitive shock absorbers that adapt to any surface ensure the best possible grip and maximum traction. All drive components such as cardan shafts, differentials, portal gearbox, main gearbox and bevel gears are made of metal for greater durability. The standard steering servo with a force of 35 kg and metal gears ensures directional stability and sufficient power. Mini servos with a force of 1.5 kg are used to control the differential locks and shift the 2-speed gearbox.

The model is supplied with a high-quality programmable 10-channel 2.4 GHz remote control equipped with a color display. The vehicle is also pre-installed with a sound and light module. The LED light system can also be switched using the transmitter. The driver's cabin is made of durable ABS plastic and can be tilted forward using a tilting mechanism behind it, which provides a view of the generous space for batteries and electronic components of the model. All doors + hood can be opened.

A 2S or 3S LiPo battery with maximum dimensions of 142x31x45mm and an XT60 connector is suitable as a drive battery. The model is equipped with a sensitive Hobbywing WP1060 speed controller with hill brake. The maximum speed of the model is approx. 30 km/h in second gear (3S 11.1V LiPo battery). The model is delivered in an aluminum box in which all parts have their safe place.

Features:

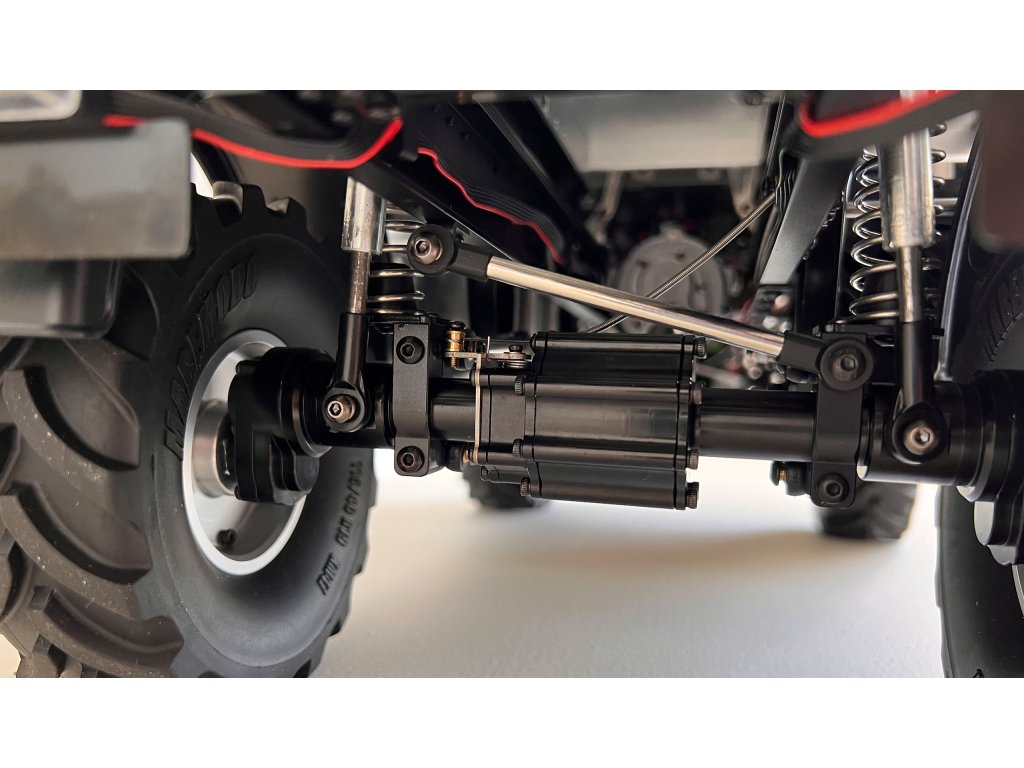

• Portal axles: For maximum traction of individual wheels and greater ground clearance in off-road conditions.
• Functional cable winch that can be switched via transmitter.
• LED lighting system and sound module.

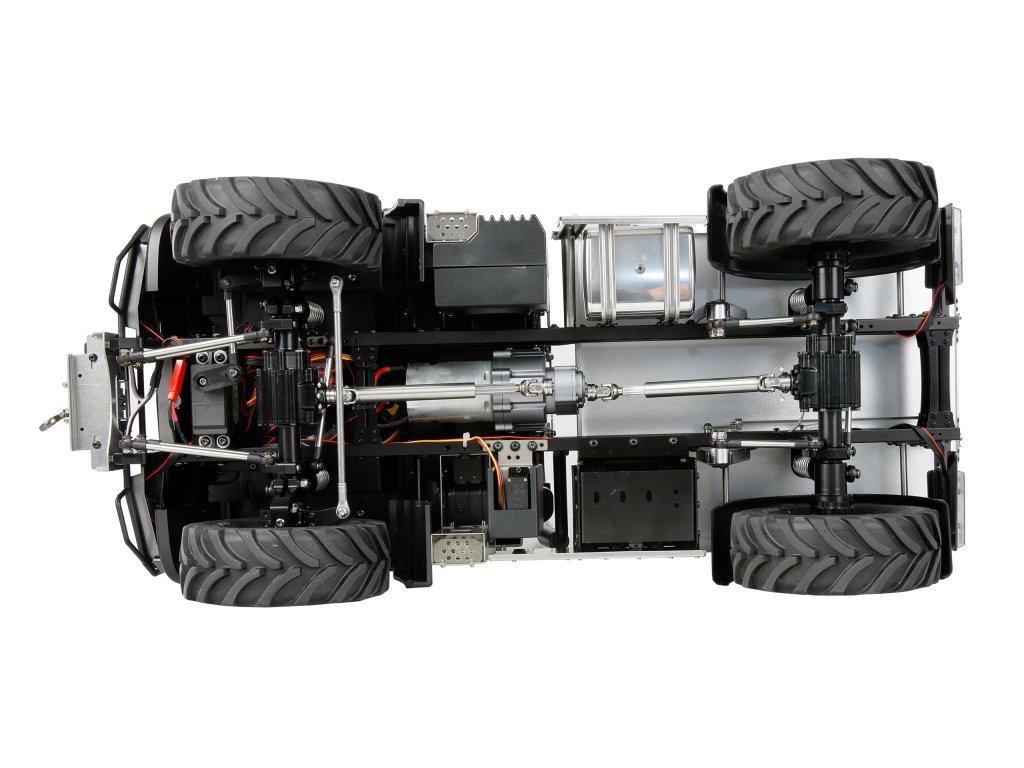

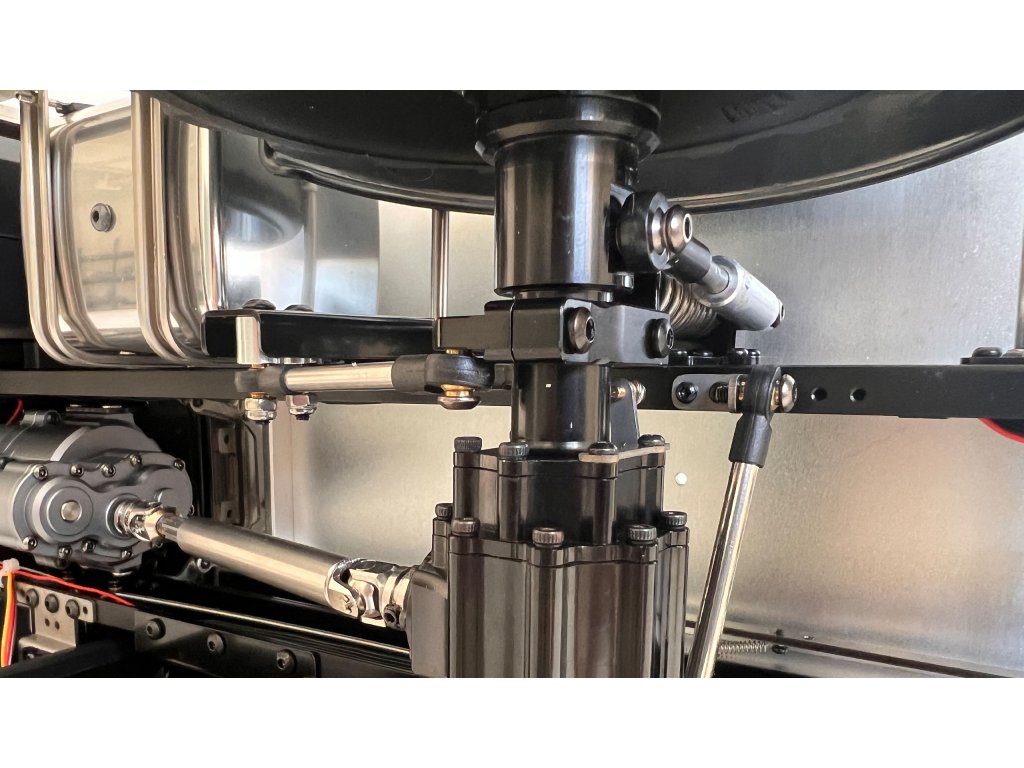

• Metal drivetrain and gears

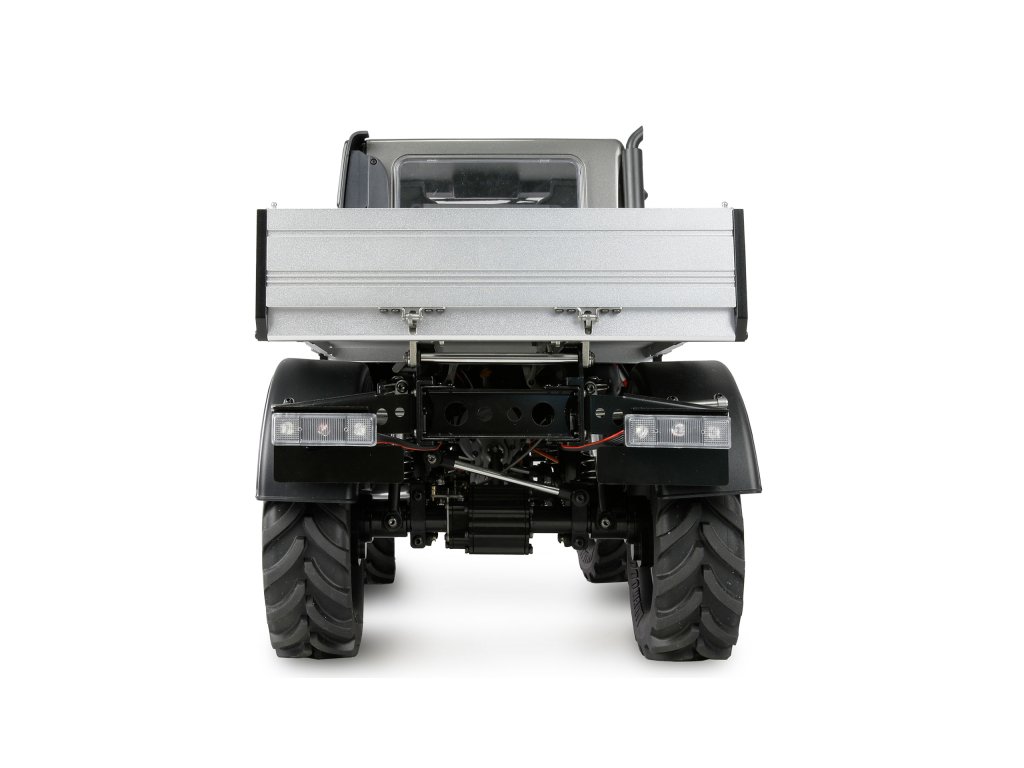

• Aluminum cargo area with folding side walls
• Switchable differential locks
• 2-speed gearbox
• Many additional parts

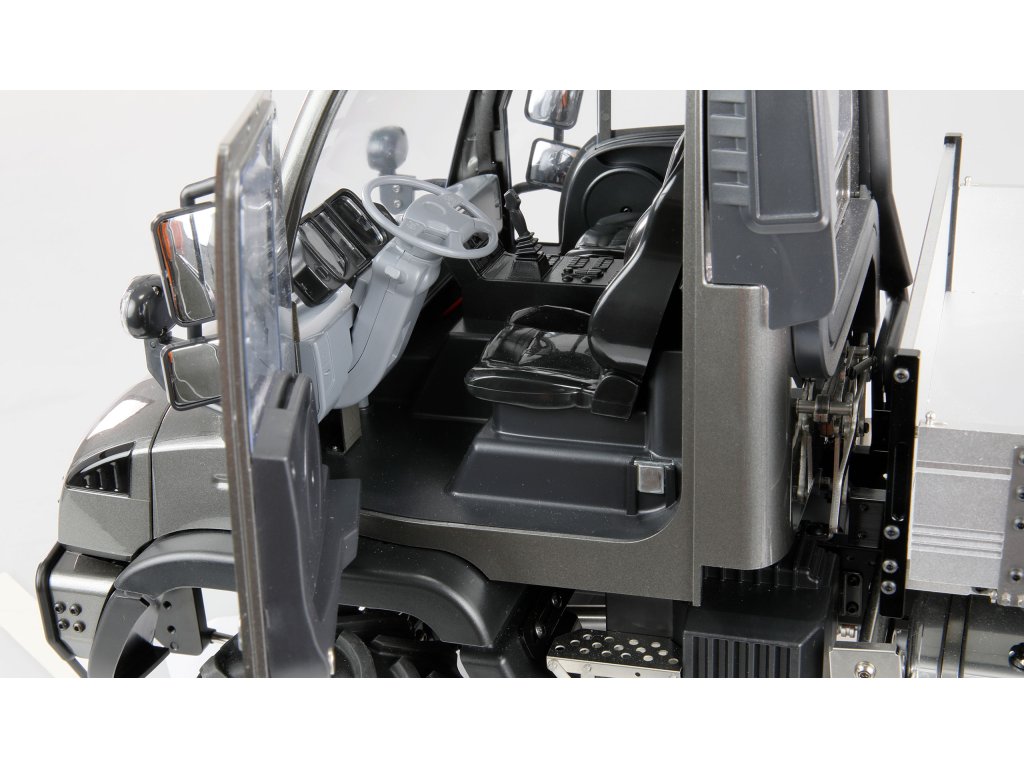

• Driver's cabin made of high-strength ABS plastic with built-in interior and functional doors
• Opening hood for easy access to electronics
• Hobbywing WP1060 ESC
• High-quality 10-channel 2.4 GHz remote control

Parameters:

• Scale: 1/10
• Length: 525 mm
• Width: 225 mm
• Height: 300 mm
• Weight: 5650 g
• Wheelbase: 300 mm
• Front track width: 185 mm
• Rear track width: 180 mm
• Ground clearance: 50 mm

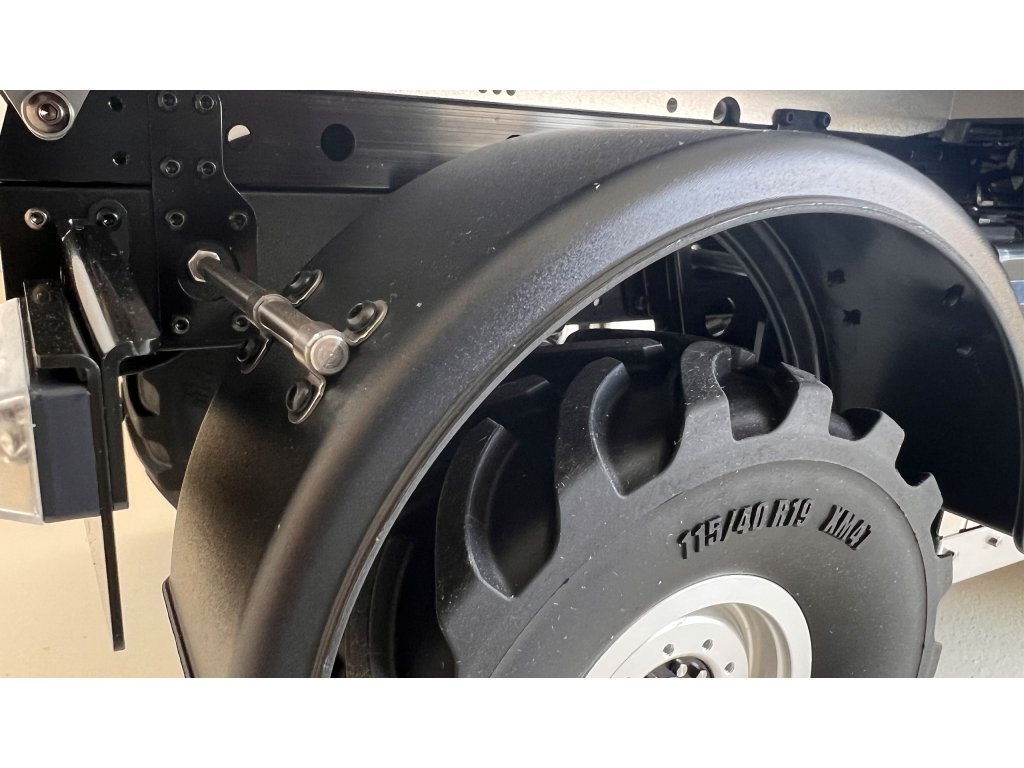

• Front wheels: outer diameter/width 110/40 mm
• Rear wheels: outer diameter/width 110/40 mm
• Rim diameter: 54 mm
• Gearbox: 2-speed metal
• Front shock absorber: 65 mm
• Rear shock absorber: 65 mm
• Brake: electronic
• ESC: Hobbywing WP1060
• Motor: 540 motor (DC)
• Steering servo: Standard servo 35kg metal gearbox
• Main material: metal
• Battery compartment dimensions: 142 x 31 x 45 mm
• Battery recommendation: LiPo 2-3S with XT60 connector
• Driving time: depending on the selected battery size
• Maximum speed: approx. 30 km/h in second gear (with 3S LiPo)
• Remote control: 10 channels 2.4 GHz
• Range: approx. 150 m

Package contents: Model, Remote control, Additional parts, Instructions DE/EN

Need to purchase: 2-3S LiPo battery with XT60 connector, Suitable charger, 4x 1.5V AA batteries for the remote control

Run-in of the new electric motor
New model with engine, needs to be run in first. Before starting to use the DC electric motor, it is definitely recommended to run it. Some manufacturers require it as a condition for recognizing a possible engine claim. The purpose of the run-in is to seat the rotating parts well, smooth the friction surfaces of the contacts, and grind the carbons into the correct shape. The current enters the motor on the commutator surfaces using the so-called carbons, which may not have a perfectly adapted shape from production. If the new motor is loaded to the maximum without a previous run-in, the commutator surface or the carbons may be damaged due to large "sparking". The run-in will allow the carbons to settle on the commutator as perfectly as possible. Thus, the carbons will wear out less and last longer.

Electric motor run-in procedure:
-If you have a new RC model car or boat in which the engine is already mounted, proceed as follows. Place the model on the mat so that the wheels rotate above the surface. Let the engine run at the lowest possible speed for at least 20-30 minutes. You can then drive the model for 20-30 minutes at a lower speed and gradually increase the speed. Drive the model at full power only after the run-in phase has passed.

-If you have a new engine that has not yet been installed in the model, you can do the run-in in the traditional, proven way by immersing it in water. Connect the motor to the ESC controller and lower it by the cables vertically down into a container of clean water. Start the engine at low speed and let it run for 10-15 minutes. Then you can gradually increase the speed for a few minutes up to the maximum. finally, take the motor out of the water and let it run for a while to blow the water out of the motor. You can mount a run-in engine in the model and you can immediately drive at full power. You don't have to worry about the engine submerged in water. It will work normally and the water will cool it during the run-in. In addition, it washes out carbon particles during grinding (the water visibly darkens).

Protection against overheating of the electric motor:
Since the stator is made up of permanent magnets, it is good to know that these magnets gradually lose their "power". However, temperature also has a big impact. Each electric motor heats up during operation and can reach a temperature of 60°C (therefore, the motor must never be touched with bare hands after driving!). However, if the engine is not cooled or cooled insufficiently, or if it is driven for a long time at maximum speed, it may overheat and thus weaken the magnets. Even after cooling down, the engine will no longer reach its previous performance. Of course, other parts of the engine can also be damaged by high heat. It is therefore advisable to change the load mode, or to drive with two smaller accumulators with a break for replacement and cooling, rather than with one large-capacity one for a long time at full power.

Electric motor replacement, tuning:
If you decide to replace the electric motor in this model, pay attention to the following recommendations.
The new motor should be of the same type (size), have the same number of turns and the same supply voltage value as the original one. That way, you will be sure that the model will retain its original driving characteristics.
If you are planning a tuning motor, first of all, check whether the original ESC controller in the model will be able to work with the tuning motor, in order not to burn the ESC controller, or to prevent the ESC-motor system from working. When tuning a motor, it is usually necessary to replace a pinion with a different number of teeth.

WARNING! This RC car is not a toy, but a more sophisticated, functional model that behaves very much like a real car. Due to its realistic parameters, if it is not properly assembled and operated, it can cause you injury, or injure the viewer, or damage property. The model is intended for driving in a large room or outside on a dry surface. Driving in water, in snow, in puddles, mud, sand, in tall grass without appropriate waterproof treatment can cause damage to the electronics of the model. Driving on public roads and other places (e.g. parking lots) with car traffic is prohibited. Do not drive in thick grass, you will overheat or burn the engine!
This model requires regular maintenance, by disassembling it correctly according to the service manual, you will not lose the warranty.
