Kavan FunStik 1280mm KIT

Product detailed description

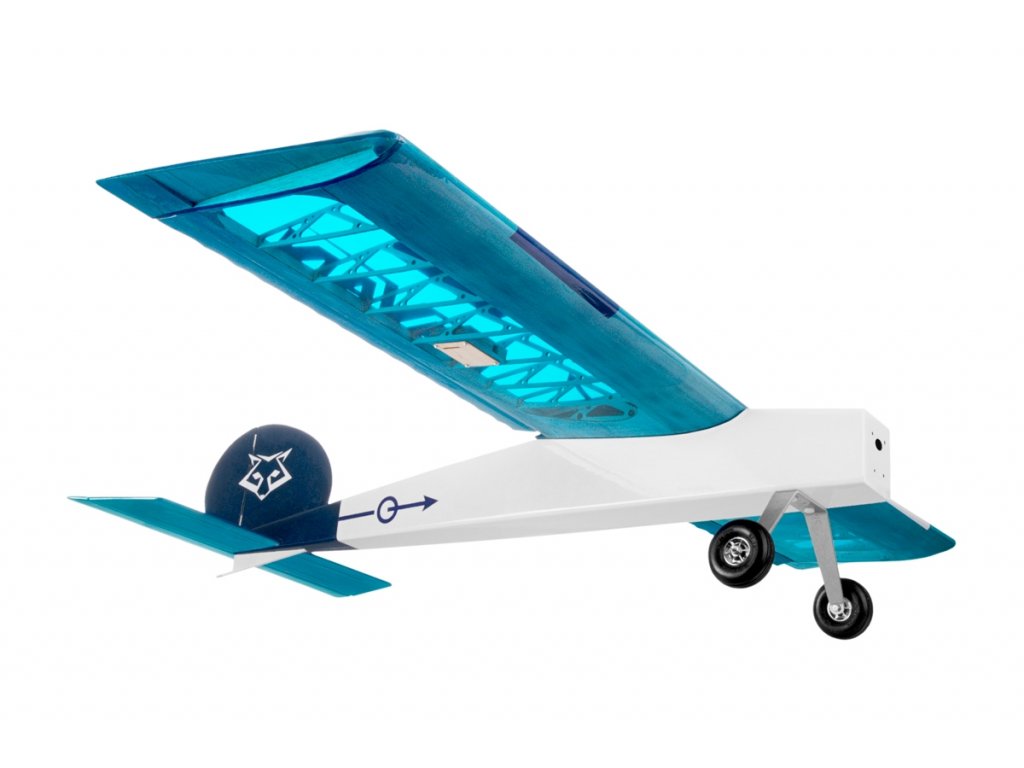

Recreational acrobatic glider kit in retro style "fokker-morane" with a wingspan of 1280 mm powered by a 3.5-4 cm3 spark-ignition engine or a 500-600 W AC electric motor. Lightweight classic construction made of laser-cut balsa parts and light plywood; wing with symmetrical profile. Controlled wings, rudder, elevator.

The hull is of classic balsa and light plywood construction; its "skeleton" is a balsa bottom board with laser-cut notches, into which all partitions, partitions and sides are gradually "planted". The internal combustion engine is mounted on a plastic bed on a plywood engine bulkhead; you can just as easily mount the electric motor located at the back. The space for the rudder, elevator and throttle servos is in the fuselage under the wing. The removable cover on the upper side then allows access to the fuel tank or the insertion of the drive accumulator.

The one-piece wing with a symmetrical profile is of conventional construction with balsa ribs and a rigid torsion box cover. It is attached to the hull with two plastic screws. The construction is again facilitated by the use of laser-cut parts with notches and protrusions in the style of a "puzzle", which makes it possible to assemble everything correctly and without twists without the need for structural preparations. The wings along the entire wing span are controlled by two microservos with short straight wire rods. The design of the wing allows you to place the wing rods and levers on the underside of the wing (suitable for flying with landing gear) or on the top side of the wing (suitable for flying without landing gear and landing on your belly in the grass).

The tail surfaces are boards, glued together from spruce joints and laser-cut balsa parts. The rudder and elevator are controlled by servos located in the fuselage under the wing using wire cables.

Necessary to purchase:

You will need at least a four-channel RC set to control the model. The servos for the turn signal and elevator will fit standard with a pull of 3-4 kg.cm, to reduce the weight of the electrolet you can mount mini- or micro-servos with similar parameters. Use quality microservos for the ailerons and throttle.

To drive the model, you can choose ordinary two-stroke engines with a 3.5-4.0 cm3 glow plug and a 100-150 ml tank; if you opt for a more powerful engine O.S. MAX-25FX II, a 150-170 ml tank is more suitable.

In the case of the electric version, you can install a 500-600W brushless electric motor, for example KAVAN C3542-1200 or Model Motors AXI 2820/10 V2 with a 50-60 A regulator and a 3S LiPo 2200-2600 mAh battery.

Package contents:

Kit includes: laser-cut balsa and plywood parts, spruce beams, balsa beams and hardboards, accessory kit, duralumin chassis, lightweight wheels, sheet of self-adhesive decals, construction plan and instructions.

Parameters:
