Kingfisher 1400mm with wheels, floats and skis ARF FMS
Code: 5618084Product detailed description

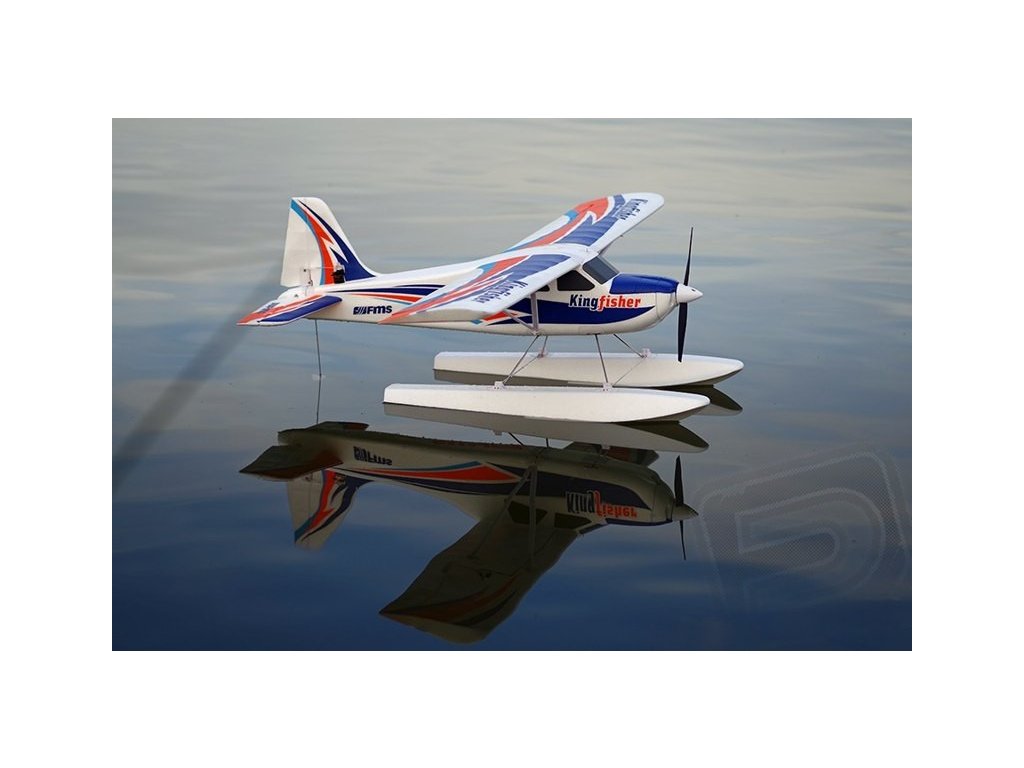

The Kingfisher is a 1400mm wingspan school and advanced training engine model made of durable EPO (extruded polyolefin) foam for year-round flying, from ground, water and snow. The classic cabin high-wing with struts offers a durable duralumin landing gear with large foam wheels, a set of floats with water rudder and plastic skis in a single set. The kit also includes a holder for mounting an FPV camera, which can capture the world from the perspective of the pilot sitting in the cabin... Large dimensions, attractive appearance, model details, pleasant flight characteristics - an ideal year-round recreational model for anyone who has already mastered piloting school models. for example. Pioneer, Beta 1400, Alpha 1500...
The model's EPO foam fuselage comes with a C3536-850 rotary-shroud AC motor mounted, with a 40A AC regulator fitted, and rudder and elevator servos. In the front upper part of the hull there is a space for accumulators easily accessible thanks to the removal cover. For the Kingfisher, you will need Li-Pol three-cell 2200 mAh with a load capacity of 25C.
The tail surfaces are made of EPO, the vertical tail surface is firmly attached to the fuselage, the horizontal one is fixed with screws. The rudder and elevator servos are located on the sides in the tail section of the fuselage.
The wing, also made of EPO foam with a modified Clark-Y profile, is two-part, connected by a carbon joint. Both halves are attached to the hull with screws. The ailerons and flaps are controlled by two pairs of servos mounted in the wing with short straight wire rods. Before connecting the tie rods, it is recommended to "move" the rudders by repeated careful deflection up and down or left and right.
The two-wheel undercarriage is made of duralumin, the spur is coupled to the rudder, and it can be exchanged for a water rudder when flying with floats. The wheels are large foam for "bush flying"; they can easily be exchanged for a pair of skis for flying on snow.
The floats are EPO foam with wire struts.
Ailerons, flaps, rudder (with coupled spur or water rudder), elevator and engine speed are controlled.
To control the model, you will need at least a 5-channel, but preferably at least a 7-channel RC kit, which allows independent control and adjustment of the ailerons and flaps servos.
The ARF set includes: a finished model with an AC motor, a two-blade propeller, a speed controller and 6 servos, a set of wheel chassis, a set of floats with struts, a set of skis, a set of small accessories and instructions.
Necessary additional purchase: min. 5-channel RC set, drive battery, charger.
Additional parameters
Category: | Aircraft PNP and ARF |
---|---|
Warranty: | 2 years |
? Wingspan: | 1 - 2m |
? Configuration: | ARF |
? Recommended age: | from age of 14 years |
