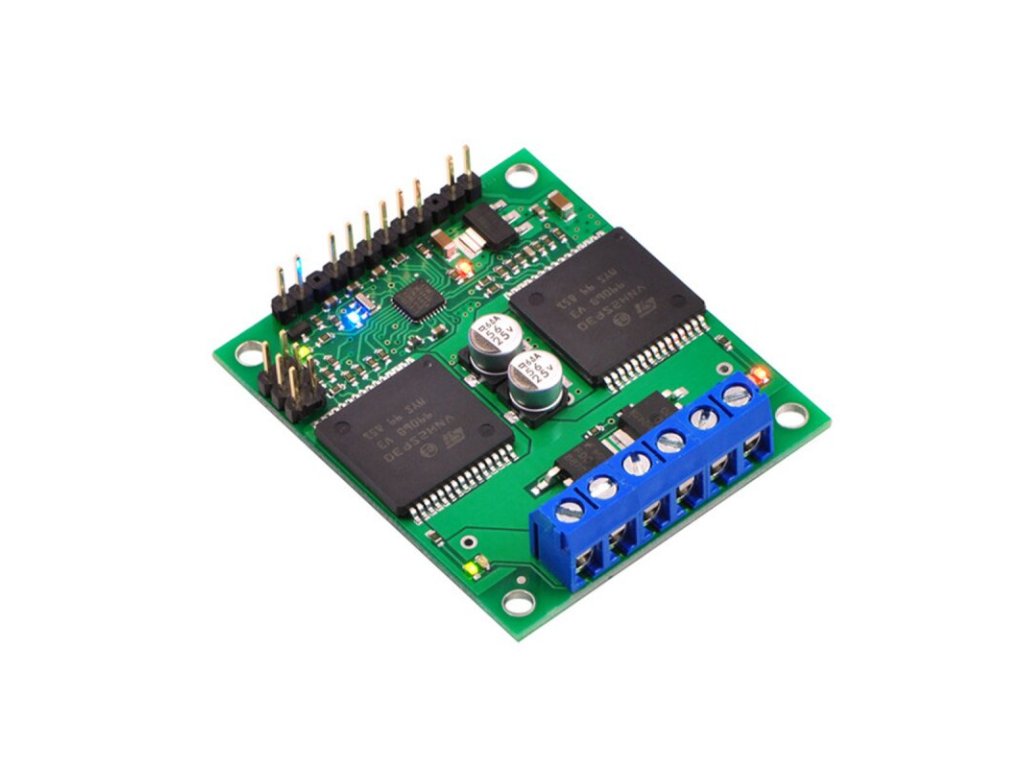

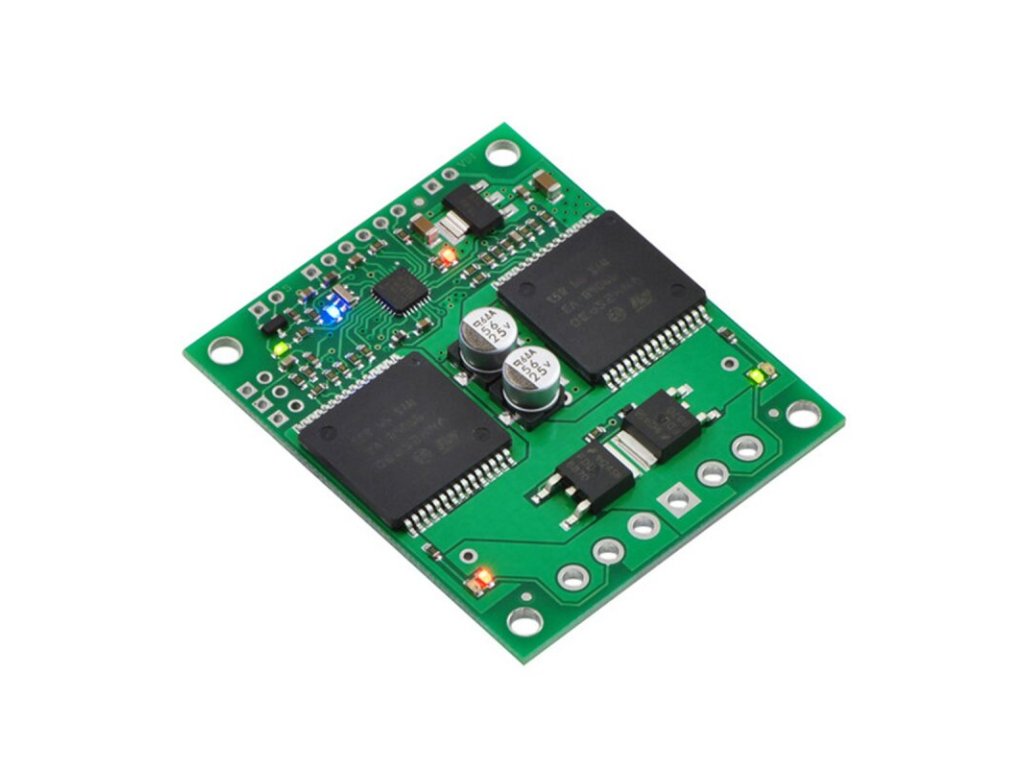

Pololu Qik 2s12v10 Dual Serial Motor Controller
Code: TORRO-OP-01012Product detailed description
Key features:
-
Powerful dual motor drive: Control two DC motors with precise control over speed and direction. The controller offers 13 A continuous current per channel and can handle peak currents of up to 30 A per channel, making it ideal for powerful motors.
-
Flexible interfaces: The controller supports both non-inverted TTL serial and RS-232 interfaces, allowing easy integration into various microcontroller-based Projects.
-
Protective functions: The Qik 2s12v10 has extensive protection mechanisms, including reverse polarity protection, thermal shutdown protection and current sensors. These functions ensure safe and stable performance, even under extreme conditions.
-
Simple setup: Thanks to its compact construction and sophisticated design, the controller is easy to install and integrate. With integrated status LEDs and comprehensive documentation, you can quickly get started with your Project.
-
Compatibility: The controller is fully compatible with the Open Panzer Board, making it the ideal addition for remote-controlled vehicles, robot projects and other mechatronic applications.
Applications:
- Robot drive systems
- Remote-controlled vehicles
- Automation Technology
- Modelling and prototyping
Technical specifications:

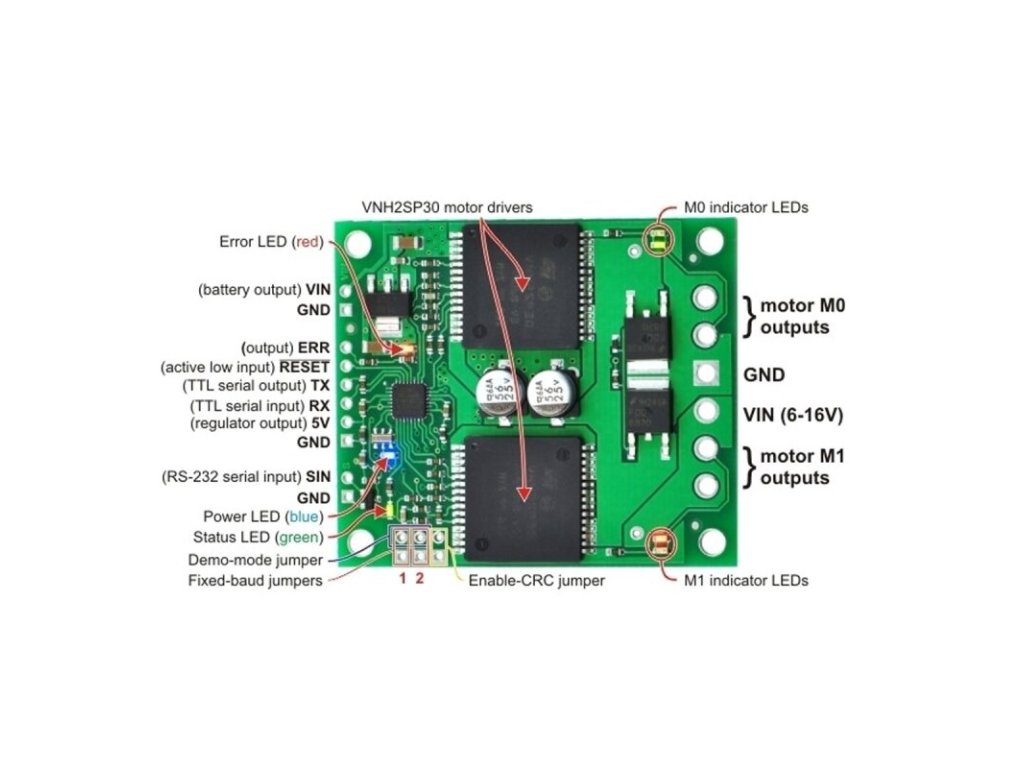

- Motor Driver: VNH2SP30 x2
- Motor Channels: 2
- Control interface: Non-inverted TTL serial (2-way); RS-232 serial (1-way)
- Minimum operating voltage: 6 V
- Maximum operating voltage: 16 V
- Continuous output current per channel: 13 A
- Peak output current per channel: 30 A
- Auto-detect baud rate range: 1200 – 115.200 bps
- Available fixed baud rates: 115.200 bps, 38.400 bps, 9600 bps
- Available PWM frequencies: 19,7 kHz, 9,8 kHz, 2,5 kHz, 1,2 kHz, 310 Hz, 150 Hz
- Reverse voltage protection: Yes

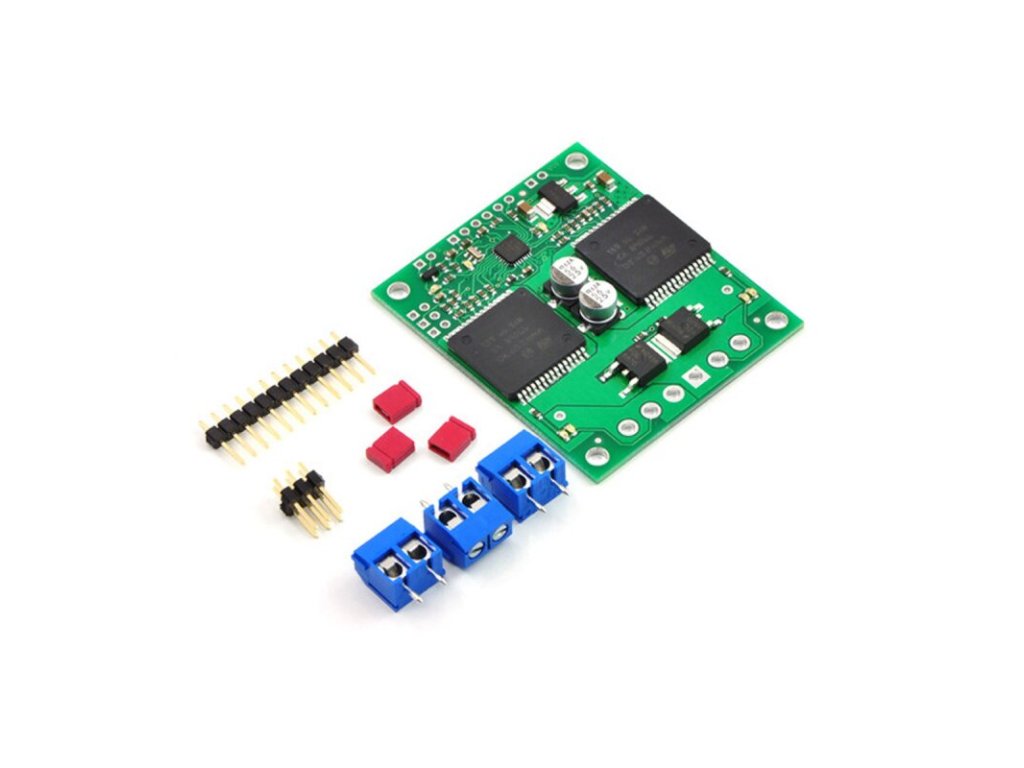

Scope of Delivery:
- 1x Pololu Qik 2s12v10 Dual Serial Motor Controller
- 1x Connection cable set
- Detailed documentation (digital) on the Pololu website
Additional parameters
Category: | RC Models |
---|---|
Warranty: | 2 years |
