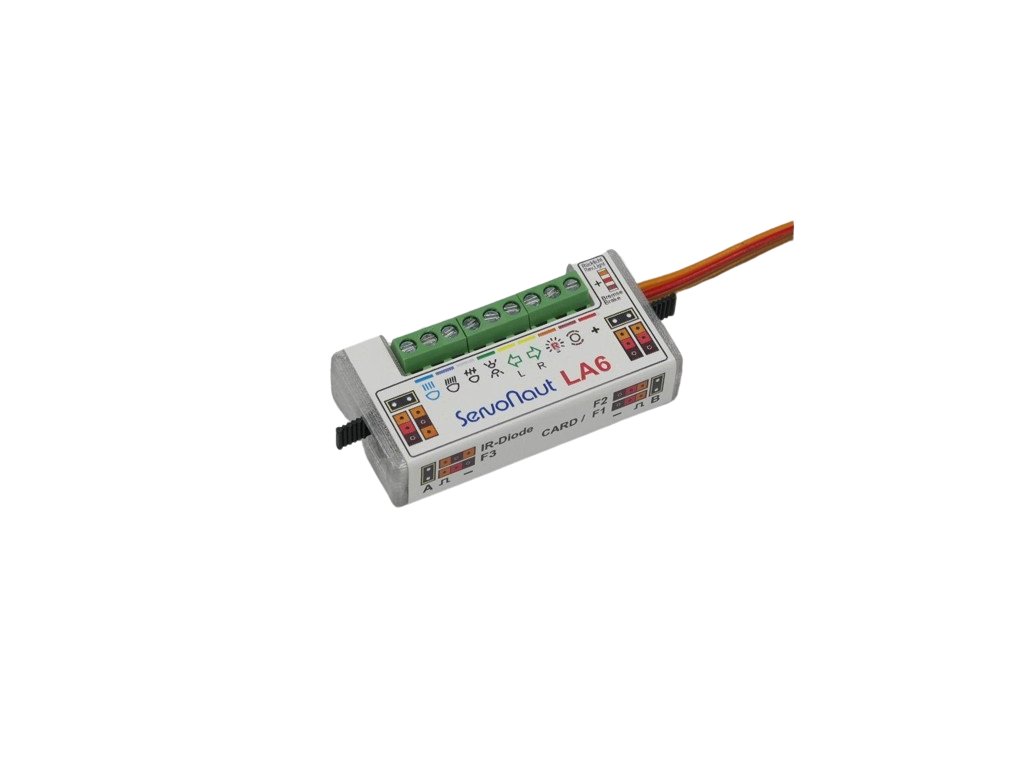

Servonaut LA6 light modul

Product detailed description

Universal small lighting system with 6 switching outputs and built-in IR transmitter for semi-trailer/trailer.

Six switching functions:
blinkers, hazard lights, parking and low beam lights, main beam lights, fog lights, light horn

Possibility of control via Multikanal system (Nautic) or S-Bus bus

Optional xenon effect, light bulb imitation, transfer of 1 or 2 servo outputs to the trailer..
To use the integrated infrared transmission in a semi-trailer or trailer, it is necessary to purchase only a transmitting diode.
A new option to equip the model: instead of an expensive regulator with control lighting M24 and infrared transmission AIR4-> equip a cheaper S22 or E22 with this module and for comparable money you have a much better control system.
Similar to the more comfortable and program-rich LA10, but with all the important functions and at a good price.

• Universal small lighting system with 6 switching outputs and IR transmitter
• suitable e.g. for Servonaut speed controllers S10,S20,S22,G22,G24,E22
• suitable for our dual controllers M224 and M211 (M211 see manual)
• Simple connection, brake light and reversing light on screw terminals
• Classic with bulb simulation or xenon light
• Parking, dipped beam, headlight flasher and main beam
• L/R indicator and breakdown indicator
• An additional output for fog lamps, for example
• IR transmitter for AMO trailer electronics already installed
• 1 or 2 servo inputs for direct transmission to the trailer, depending on the control system
• Nautic, Multiswitch and Multibus compatible
• SBus compatible with teach-in without CARD or computer
• Can of course also be used on two channels without multiswitch
• Optional setting options via Prog-Card or Display-Card
• 700mA outputs, overload-proof, professional terminals
• for battery voltages 7.2 to 12V
• Dimensions approx. 48 x 25 x 13 mm
• IR diode not included, see IR-Set
