Stabilized source eFuel 540W/30A switched source 12-18V

Product detailed description

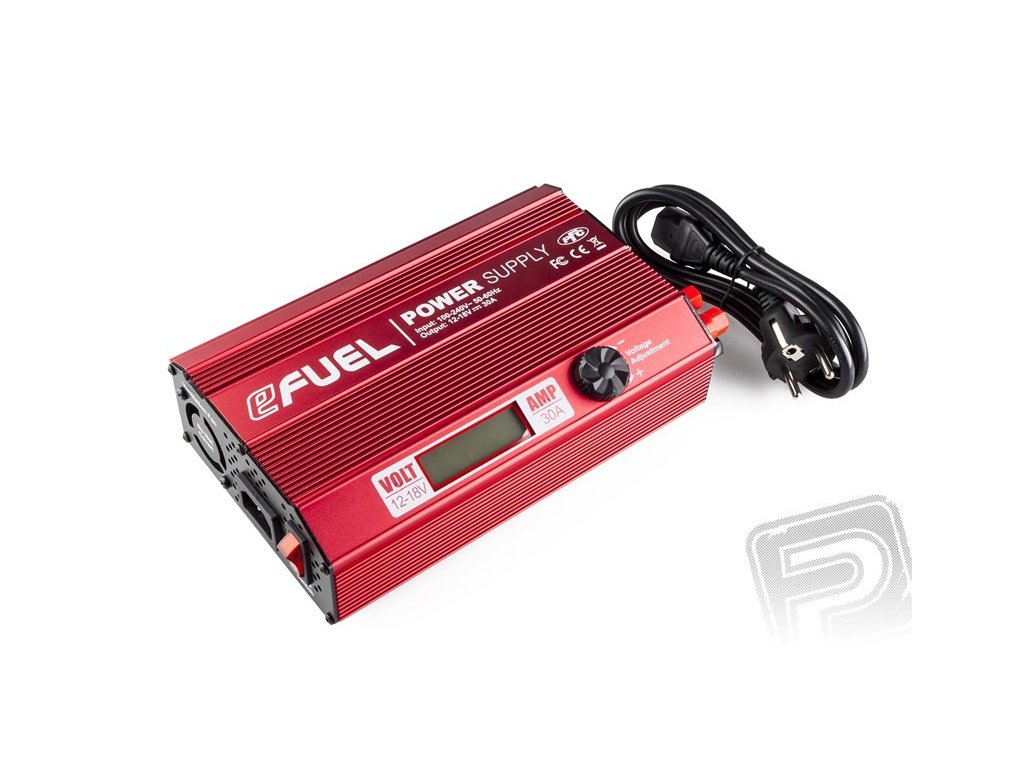

Small, light, compact, in a durable aluminum case - the eFUEL 30A stabilized mains power supply is ideal for powering model chargers and other devices requiring a 12-18 V DC power supply.

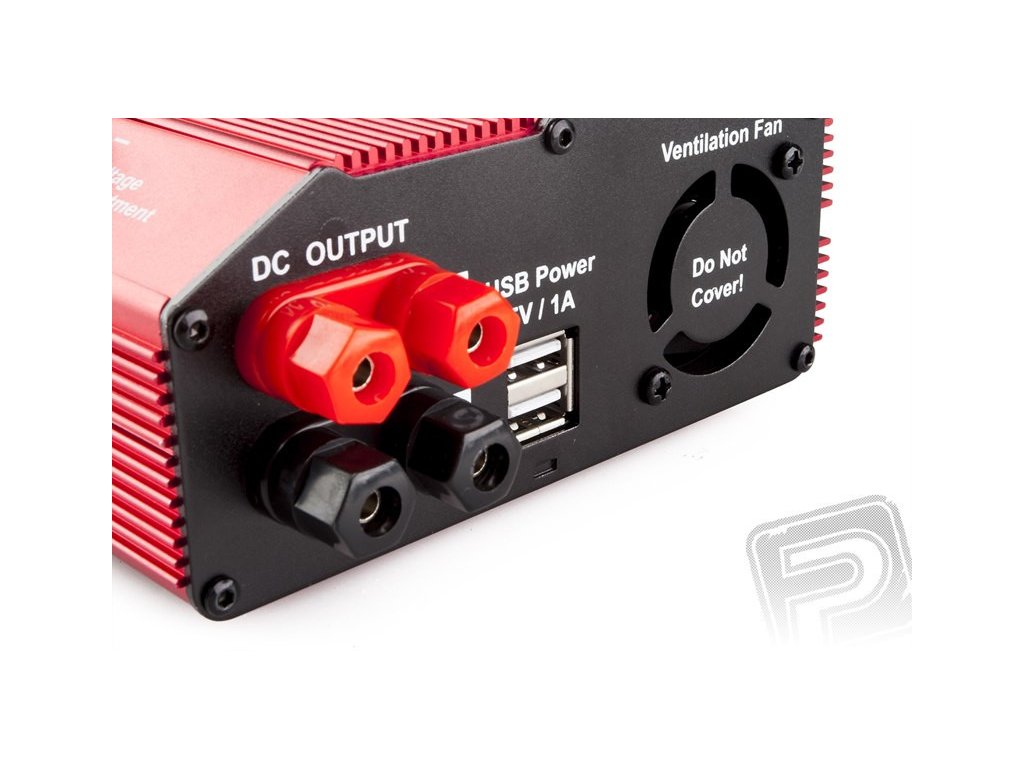

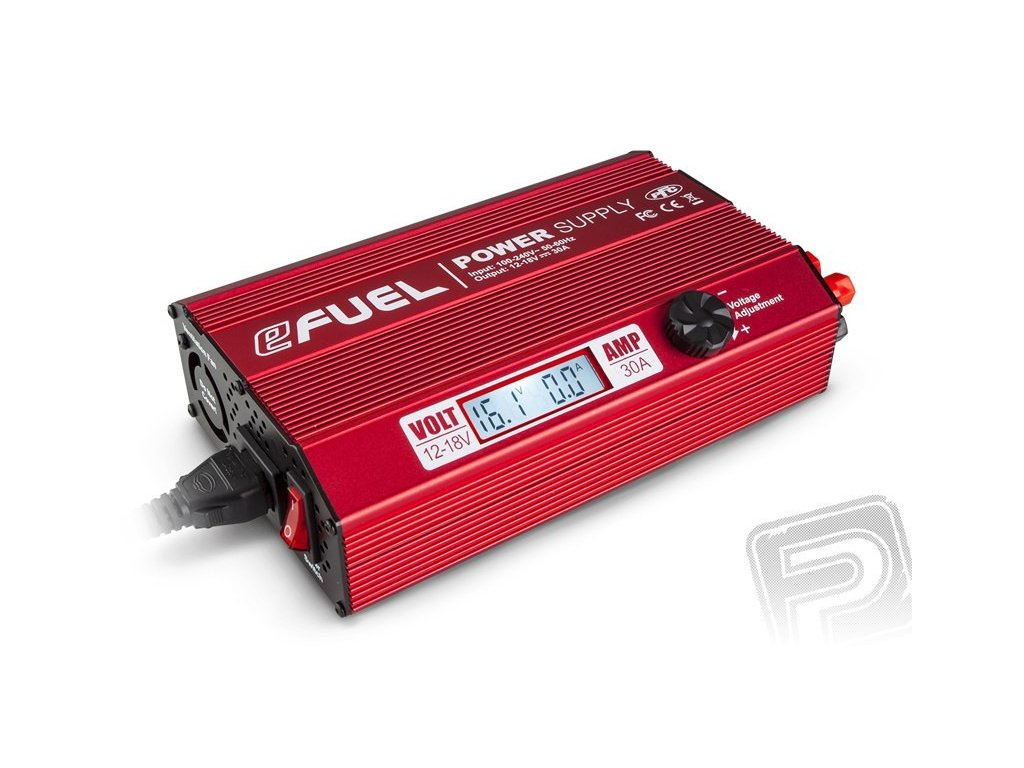

The main output of the 12-18 V/30 A source has double sockets for standard 4 mm banana plugs. The output voltage is adjustable using the selector on the front panel, the output voltage and current are displayed on the LCD display.

The auxiliary output consists of a double 5 V USB power socket with a total load capacity of max. 1 A for powering and charging smartphones, tablets, digital cameras, MP3 players and similar devices.

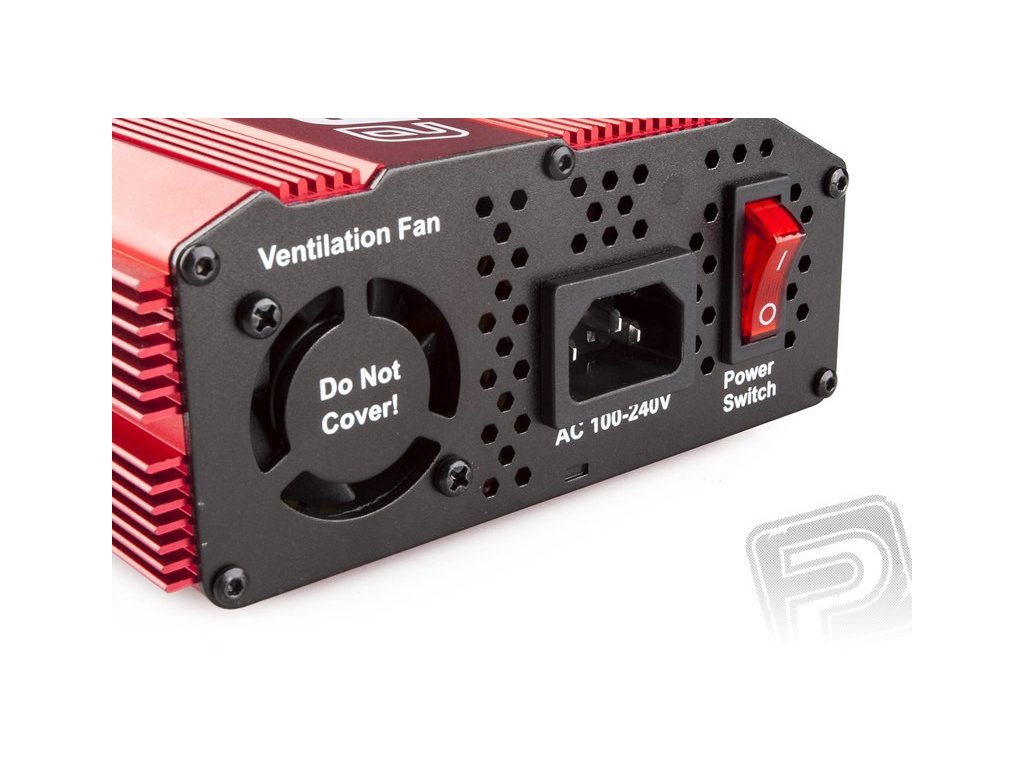

The source is equipped with protection against current and thermal overload and short circuit at the output. It is also equipped with a forced cooling system with a fan, which guarantees stable operating conditions and protects the source from overheating.

Tip: The ideal addition to the power source is the PowerStrip multi-socket, allowing easy connection of up to 6 appliances to the output of the power source.

Input voltage: (mains - AC) 100 - 240 V/50 - 60 Hz
Number of channels: 2
Output voltage: main output 12 - 18 V
Output current: main output 30A
Power: 540 W
Efficiency: 89%
Output voltage USB output: 5 V
Output current USB output: 1A
Regulated: yes
Display: yes
Length: 218 mm
Width: 139 mm
Height: 59.5 mm
Weight: 1620 g

The package contains:

- stabilized source eFUEL 30A
- network cable
- instructions
