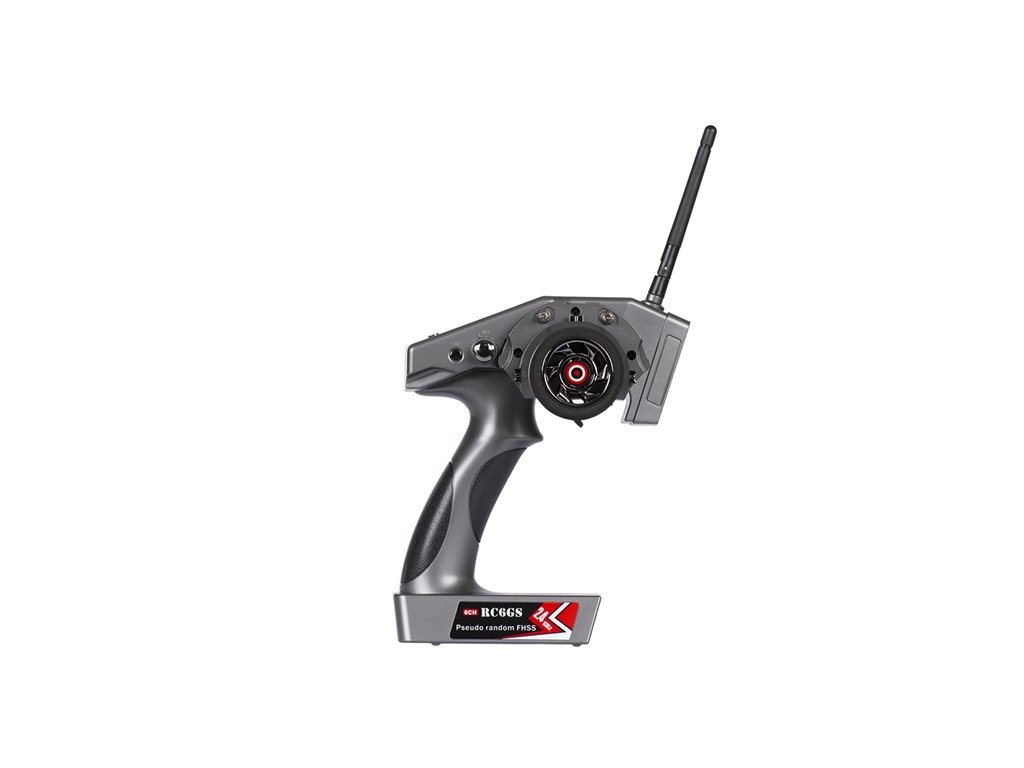

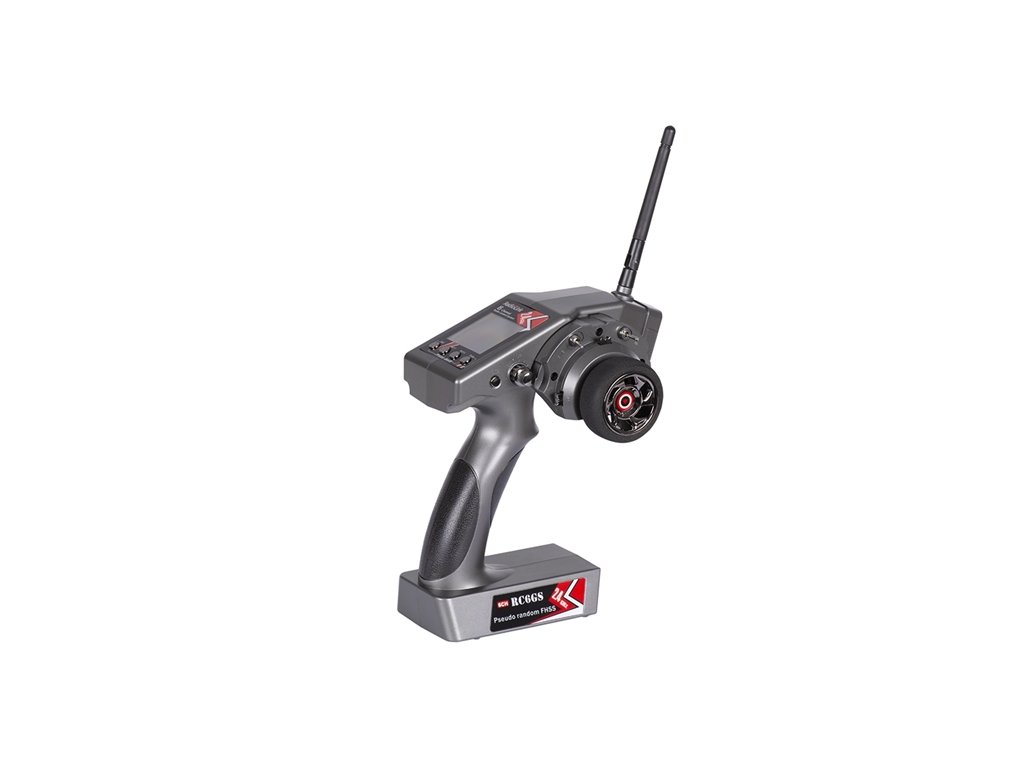

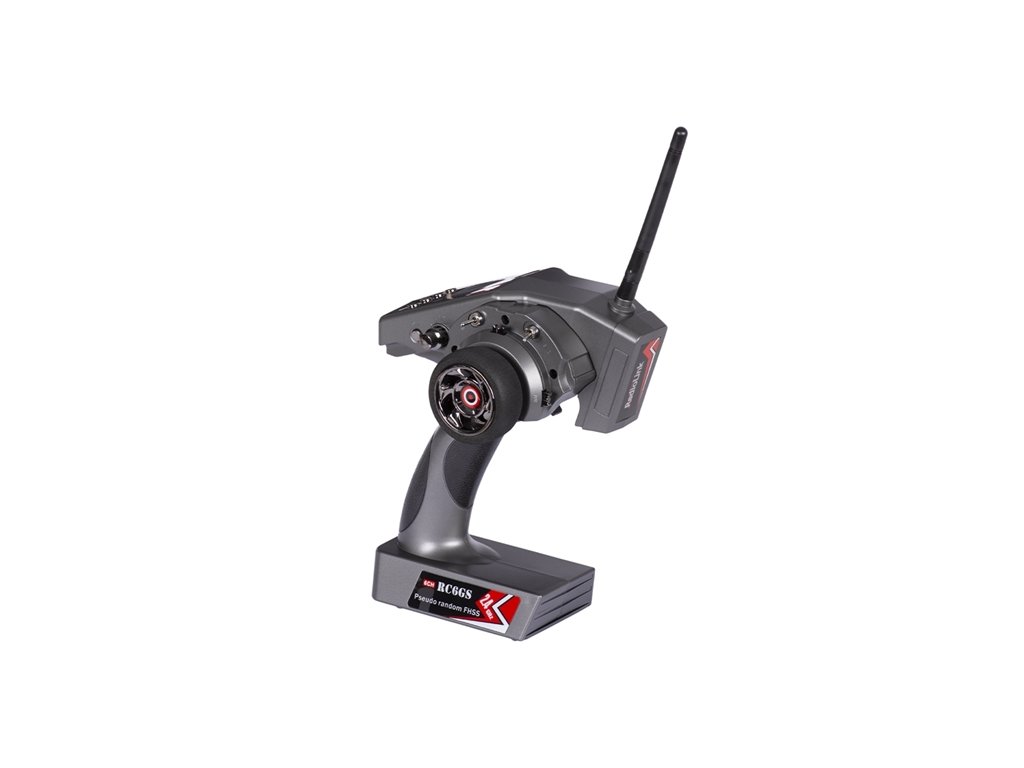

Radiolink RC6GS V2 transmitter with R6F receiver

Product detailed description

Six-channel steering wheel RC kit 2.GHz FHSS for recreational model cars and boats. 3 digital trims, rotary knob, 2 toggle switches and 2 pushbutton switches assignable for channels 3-6 or mixes. Memory for 10 models, mix settings, dual deflections, endpoints, subtrims, expo control, throttle curves, 2 freely programmable mixes, etc. With R6F receiver.
Six-channel Radiolink computerized steering wheel RC kit using FHSS 2.4GHz telemetry transmission system for recreational model cars and boats. With the R6F FHSS receiver included in the kit, you have 6 PWM channels for classic servos without telemetry. The RC6GS transmitter can also work with the R6FG receiver with built-in gyro or the R8EF and R8FM "aircraft" receivers (primarily intended for T8FB and T8S transmitters). The range of the RC kit is up to 400 m, so you don't have to worry about launching your boat into larger water. With the upcoming R7FG telemetry receivers, it will enable the transmission of telemetry and the display of the receiver's supply voltage and the signal strength received by the receiver on the transmitter's display.

In a classic steering wheel design with a handle that fits well in the hand, the RC6GS transmitter is equipped with a steering wheel control, a throttle trigger, a rotary knob for the third channel, three digital trims around the steering wheel (for channels 1-3), two three-way toggle switches and two push button switches . Four buttons are used for programming; easy orientation in the intuitive menu is ensured by the LCD display. The RC6GS has memory for 10 models and a wide range of programming functions, including two freely programmable mixes, so you can easily set up common and special car models (e.g. steerable front and rear wheels for crawlers, tracked vehicles, twin-shaft boats, etc.).

To start the transmitter you will need 6 AA alkaline batteries or NiMH accumulators stored in the holder in the transmitter.

FUNCTION

FHSS 2.4GHz transmission system for RC cars
6 proportional channels (channels 1 and 2 with controllers, channels 3 to 6 with freely assignable controllers or switches)
Steering wheel control
Throttle control trigger
Rotary knob for channel 3 (button switches can also be assigned)
3 digital trims (steering, throttle, channel 3)
2 lever three-position switches above the steering wheel (can be assigned to switch on mixes and as channel controls)
2 push-button switches on the handle (can be assigned to switch on mixes and as channel controls)
Program functions

Memory for 10 models (adjustable name of 7 characters)
Setting the size of deviations for all channels
Reversing the direction of deviations for all channels
Subtrims for all channels
Exponential progression of control deviations
Throttle Curve (For Forward: Smooth Exponential, Curved Straight or 5-point Curve; For Brake/Reverse: Smooth Exponential)
Speed of the steering and throttle servos
Dual steering deflections
Fail safe emergency deflections for all channels
Controller selection for channels 3 to 6
ABS
Safe idle
Acceleration of the gas
Two freely programmable mixers with arbitrary assignment of the control and controlled channel (e.g. for controlling the second steering servo, dual-circuit brakes, tanks and other tracked vehicles, twin-shaft ships, etc.)
Display of the status of the transmitter batteries/accumulators on the display with an adjustable threshold voltage for warning signaling
Gyro gain remote control
With telemetry receiver: Display of receiver supply voltage and signal strength on display with adjustable threshold voltage for warning signaling
ID SEED: Special function especially for ship models - in the event that the ship loses power (for example due to aquatic vegetation winding on the propeller) or capsizes, it allows you to switch to another model in the transmitter's memory, with which you can push the "afflicted" model to the shore (while the "afflicted" model does not respond to controller movements).
Compatible receivers

Radiolink R6F (6-channel for RC cars)
Radiolink R6FG (6-channel with gyro for RC cars)
Radiolink R8EF (8-channel general purpose)
Radiolink R8FM (miniature 8-channel S.BUS/PPM for general use)
RC KIT INCLUDES

Radiolink RC6GS V2 2.4GHz transmitter
R6F receiver
Strap
Operating Instructions
